After trying to find the fuse location for the rear lights :scratch: and thanks to this forum, I did, but I thought maybe we need a full-on info page for fuses and locations.
Seems we have 4 fuse boxes on the Nav (and I always thought it was only 3- until today).
The locations are;

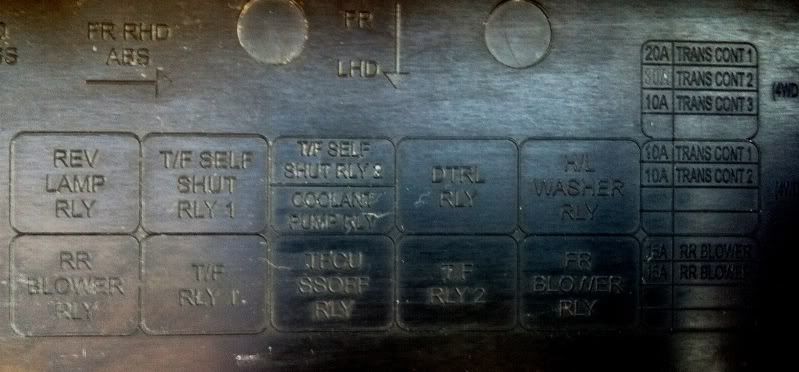

1. Inside the car, behind the lower glove box cover behind a small access cover, opened by pulling from the small slot at the bottom.
2. Engine bay, offside next to the expansion tank. Released in two clips, one at each end.
3. Engine Bay, Nearside to the rear of the air filter housing, released by two clips on each end.
4. Engine bay, nearside bear to the bulkhead, flat box with four clicks to open, then pull the whole fuse panel upwards.
1.
![Image]()
![Image]()
2.
![Image]()
![Image]()
3.
![Image]()
![Image]()
4.
![Image]()
![Image]()
Seems we have 4 fuse boxes on the Nav (and I always thought it was only 3- until today).
The locations are;
1. Inside the car, behind the lower glove box cover behind a small access cover, opened by pulling from the small slot at the bottom.
2. Engine bay, offside next to the expansion tank. Released in two clips, one at each end.
3. Engine Bay, Nearside to the rear of the air filter housing, released by two clips on each end.
4. Engine bay, nearside bear to the bulkhead, flat box with four clicks to open, then pull the whole fuse panel upwards.
