My new lightbar

Having a large amount of suicidal deer on the island I decided it might help me see them easier at dusk/night with a roof mounted lightbar.

I got my bar from these guys, http://www.ebay.co.uk/itm/Special-suppl ... 1e8a8c7570

I also bought the pre wired, wiring kit from them for about £6.

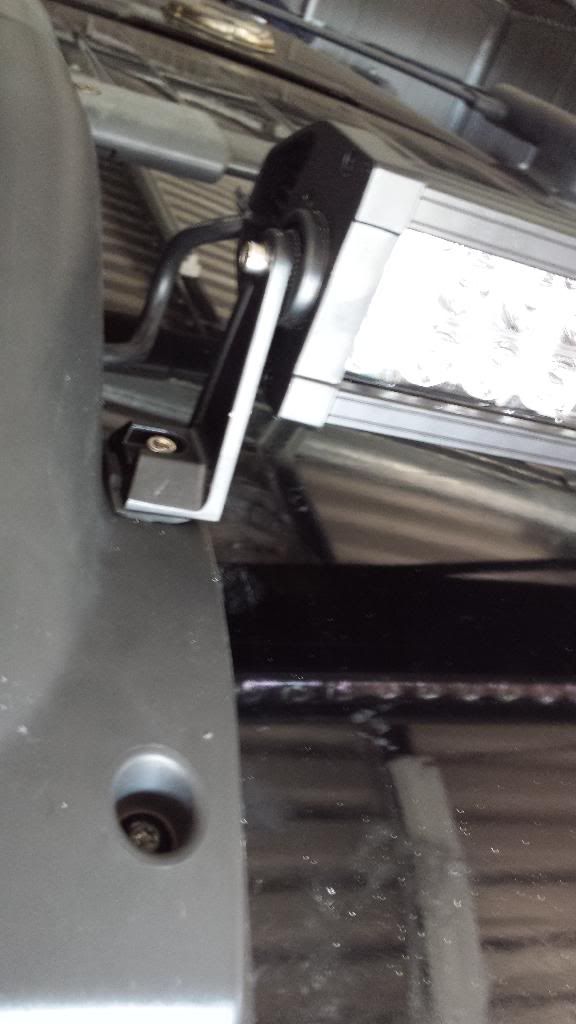

My plan was to mount it on the front roofrack feet at their rear fixing point. The brackets supplied fitted but due to the shape of the rack feet the rubber pads needed to be trimmed down to a wedge shape. using a craft knife. The lamp is nice and secure just behind the roof aerial.



I routed the cabling through the rack foot and into the roof underneath it using rubber grommets and lots of silicon to seal everything in place. The wiring passes through the bulkhead just above the throttle pedal where there is a big fat grommet. I had to cut the plug off the supplied wiring kit to get it through and splice the supplied switch into the high beam wiring at the back of the headlamp.

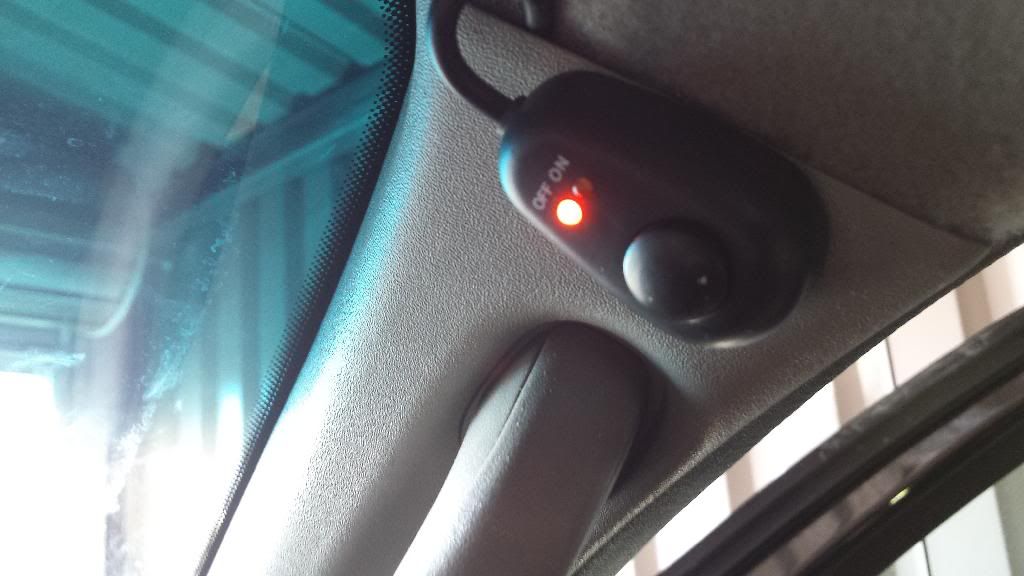

I took the switch up to the top of the windscreen pillar.



Because I have spliced into the high beam, the switch is only live when the high beam is activated. red off, green on.



This is the result;


I'm looking forward to trying it in the dark, I'll take pictures when I do.
lookskyward1 is offline
Sponsored Links
Advertisement

post #2 of 22 (permalink) Old 26-04-14, 05:57 PM
Fully run in and going strong!

Join Date: Oct 2010
Location: CAERPHILLY
Posts: 13,354
Re: My new lightbar

looking good keith




Kc driving lights 150 watts a piece, 2 additional led reversing lights equal to 55 watts each Hankook 265 75 16 pipercross air filter cone type EGR blanked off, free wheel hubs S/S exhaust from the cat back no boxes and twin side outlet pipes
pdfisher is offline
post #3 of 22 (permalink) Old 26-04-14, 08:04 PM
Fully run in and going strong!

Join Date: Mar 2013
Location: Dunfermline Fife
Posts: 2,696
Re: My new lightbar

Looks good Keith. Those guys are great to deal with.So far I have had 5 from them. 1 of which I got for free because of problems with another one, they also sen the parts to repair that one. So I hope you are as happy with them as I am

He who hesitates is in the wrong job.

12,000lb plasma front.9,500lb plasma rear winches
OME full set up,40mm body lift,Km2's.
25mm+38mm (rear) wheel spacers.
N&J liner and toolbox's
Full HID+Led lighting rig + a bit more besides.
09 Outlaw (leather)
claymore is offline

post #4 of 22 (permalink) Old 26-04-14, 08:55 PM
On the motorway!

Highland navara's Avatar

Join Date: Jul 2009
Location: Herding Wild Haggis nr Inverness
Posts: 1,242
Re: My new lightbar

looks good Keith nice and bright

Ian

D22 Black 55 with CarryBoy Canopy+100w Spot Lights, EGR Blanked, Free Wheeling Hubs, Bonnet Deflector Wind Deflector Front & Back & Toyo ATs and WiFi reverse camera, genuine Billcar modified engine & my Navara.Net stickers.
Highland navara is offline
post #5 of 22 (permalink) Old 26-04-14, 09:11 PM Thread Starter
Fully run in and going strong!

lookskyward1's Avatar

Join Date: Jan 2009
Location: South Lanarkshire UK
Posts: 15,742
Garage
Send a message via Yahoo to lookskyward1
Re: My new lightbar

Thanks guys, I'm really please with how well it fitted.
lookskyward1 is offline
post #6 of 22 (permalink) Old 26-04-14, 09:31 PM
Fully run in and going strong!

Phoenix's Avatar

Join Date: Jun 2007
Location: East Yorkshire
Posts: 11,715
Re: My new lightbar

I really hate you now

I want one of them so bad

Mk1 D22
Nissan 300ZX stage 2 upgrade 430 bhp (now 530 )
Lexus LS400 'gold' in white pearl
Rover 75 estate
Saab 9-3 Turbo
Phoenix is offline
post #7 of 22 (permalink) Old 28-04-14, 01:12 PM
Into 3rd gear and pulling like a train!

Jay72's Avatar

Join Date: Jan 2014
Location: Bucks
Posts: 76
Re: My new lightbar

Thats a good job mate, it looks cool.

D40 aventura auto
Personal plate
slate grey
helko wind deflectors
amber roof markers
snug top
parrot asteroid
reverse camera
30mm spacers
Led reverse lights
And a solid chassis 😂😂
Black grill
Angel eye headlights
Amber step running lights
32" lightbar

updating when funds allow it
Jay72 is offline
post #8 of 22 (permalink) Old 28-04-14, 02:18 PM
I'm now in 4th gear with power to spare!

Join Date: Aug 2009
Posts: 310
Re: My new lightbar

Ohh I like that
betty02 is offline
post #9 of 22 (permalink) Old 02-06-14, 01:53 PM Thread Starter
Fully run in and going strong!

lookskyward1's Avatar

Join Date: Jan 2009
Location: South Lanarkshire UK
Posts: 15,742
Garage
Send a message via Yahoo to lookskyward1
Re: My new lightbar

Well I've still not christened it in the dark yet but it does make a bit of wind noise up there. I have felt for any movement but it seams to be secure. I wonder if more substantial brackets/feet would help?
lookskyward1 is offline
post #10 of 22 (permalink) Old 02-06-14, 03:02 PM
Fully run in and going strong!

Rich.'s Avatar

Join Date: Oct 2011
Location: Newcastle
Posts: 2,612
Re: My new lightbar

Thats alwas the problem of sticking stuff on the roof that isnt streelined, its going to make noise. I ended up sound deadening the roof, i can barely hear any lind noise from mine now.

Rich
